Detector

본문

HAD1717MC
HAD1417MCW
  • Retrofit
    DR upgrade 가능(ISO4090)
  • AED
    자동 방사선 감지 기술(AED)지원
  • COST
    합리적인 가격
  • Wired
    유선타입
  • Weight
    3.75Kg
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,052 × 3,052 pixels
Effective Area 427.2 mm × 427.2 mm
Pixel pitch 140 um
A/D Conversion 14/16 bits
Spatial Resolution 3.57 lp/mm
DQE 45% (0 lp/mm, Typical)
MTF 93% (0.5 lp/mm, Typical)
Installation Tethered
Image Acquisition Tethered
AED Available
Physical Dimension(W x D x H) 460.0 x 460.0 x 15 mm
Weight 3.75Kg
Max. Load Capacity 150 kg for uniform load
Dust/Water-Resistance IP44
ADD(HAD1417MCW)

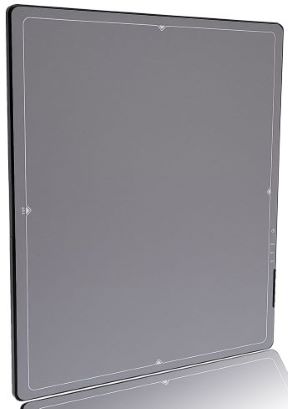

HAD1417MCW
  • HIGH
    고성능 프리미엄 제품
  • Wi-Fi
    무선 통신의 모바일 타입
  • LIGHT
    휴대성을 위한 경량 제품
  • Wireless
    유/무선 겸용
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 2,466 pixels
Effective Area 425.6 mm × 345.24 mm
Pixel pitch 140 um
A/D Conversion 14/16 bits
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 84% (0.5 lp/mm, Typical)
Installation Wireless / Tethered
Image Acquisition Tethered / Wireless
(802.11 a/b/g/n)
AED Available
Physical Dimension(W x D x H) 460 x 384 x 15 mm
Weight Approx. 3.1 kg
Max. Load Capacity 150 kg for uniform load
Dust/Water-Resistance IP44
Battery Charging Time 3 hrs. (battery charger)
Battery Operation Time 160 images for 4 hrs.
ADD(HAD1717MCW)
HAD1717MCW
  • HIGH
    고성능 프리미엄 제품
  • Wi-Fi
    무선 통신의 모바일 타입
  • LIGHT
    휴대성을 위한 경량 제품
  • Wireless
    유/무선 겸용
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 3,036 pixels
Effective Area 425.6 mm × 425.04 mm
Pixel pitch 140 um
A/D Conversion 14/16 bits
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 84% (0.5 lp/mm, Typical)
Installation Wireless / Tethered
Image Acquisition Tethered / Wireless
(802.11 a/b/g/n)
AED Available
Physical Dimension(W x D x H) 460 x 460 x 15 mm
Weight Approx. 3.7 kg
Max. Load Capacity 150 kg for uniform load
Dust/Water-Resistance IP44
Battery Charging Time 3 hrs. (battery charger)
Battery Operation Time 160 images for 4 hrs.
A1417MCW
A1417MCW
  • HIGH
    고성능 프리미엄 제품
  • Wi-Fi
    무선 통신의 모바일 타입
  • LIGHT
    휴대성을 위한 경량 제품
  • Wireless
    유/무선 겸용
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 2,466 pixels
Effective Area 425.6 mm × 345.24 mm
Pixel pitch 140 um
A/D Conversion 16 bits
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 86% (0.5 lp/mm, Typical)
Installation Wireless / Tethered
Image Acquisition Tethered / Wireless
(802.11 a/b/g/n & ac)
AED Available
Physical Dimension(W x D x H) 460 x 384 x 15 mm
Weight Approx. 3kg
Max. Load Capacity 400 kg for uniform load
Dust/Water-Resistance IP54
Battery Charging Time 3 hrs. (battery charger)
Battery Operation Time 500 images for 4 hrs.
A1717MCW
A1717MCW
  • HIGH
    고성능 프리미엄 제품
  • Wi-Fi
    무선 통신의 모바일 타입
  • LIGHT
    휴대성을 위한 경량 제품
  • Wireless
    유/무선 겸용
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 3,036 pixels
Effective Area 425.6 mm × 425.04 mm
Pixel pitch 140 um
A/D Conversion 16 bits
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 86% (0.5 lp/mm, Typical)
Installation Wireless / Tethered
Image Acquisition Tethered / Wireless
(802.11 a/b/g/n & ac)
AED Available
Physical Dimension(W x D x H) 460 x 460 x 15 mm
Weight Approx. 3.6 kg
Max. Load Capacity 400 kg for uniform load
Dust/Water-Resistance IP54
Battery Charging Time 3 hrs. (battery charger)
Battery Operation Time 500 images for 4 hrs.
F1417MCW
F1417MCW
  • Unbreakable
    Flexible Senser 적용_Glass Free
  • LIGHT
    휴대성을 위한 초 경량 제품
  • HIGH
    고성능 프리미엄 제품
  • Wi-Fi
    무선 통신의 모바일 타입
  • Wireless
    유/무선 겸용
Category Item Value
Performance Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Active Detector Matrix 3,040 × 2,466 pixels
Effective Area 425.6 mm × 345.24 mm
Pixel pitch 140 um
A/D Conversion 16 bits
Spatial Resolution 3.57 lp/mm
DQE 76% (0 lp/mm, Typical)
MTF 86% (0.5 lp/mm, Typical)
Installation Wireless / Tethered
Image Acquisition Tethered / Wireless
(802.11 a/b/g/n & ac)
AED Available
Physical Dimension(W x D x H) 460 x 384 x 15 mm
Weight Approx. 2 kg
(w/o Battery Set)
Max. Load Capacity 400 kg for uniform load
Dust/Water-Resistance IP54
Battery Charging Time 3 hrs. (battery charger)
Battery Operation Time 500 images for 4 hrs.
