OpixDR

Ultra-slim side edge

Crystal-clear image quality

Swappable

Battery

IP68

Dust/water-Resistance

StandAlone

Built-in memory

mobile background

Groundbreaking design

OpixDR, perfected with attention to every detail, marks a new chapter in digital radiography.

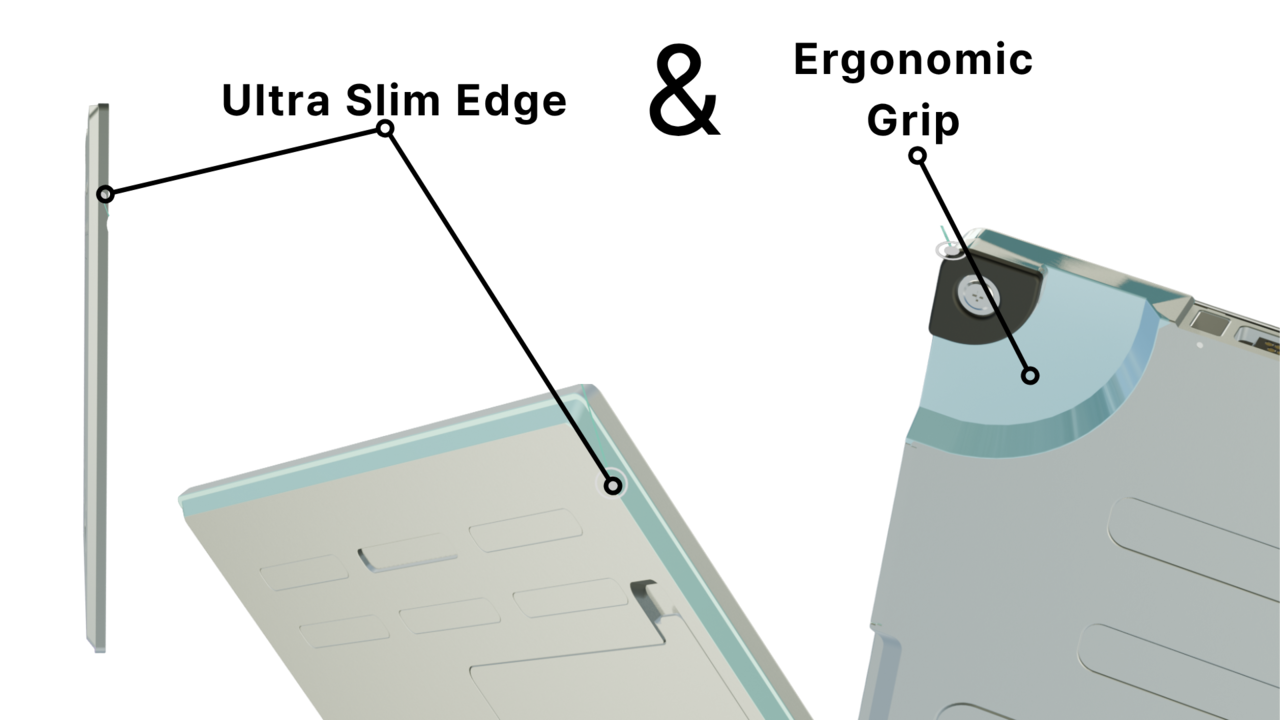

 Its newly developed slim-edge process offers a comfortable and smooth grip on all four sides.

Award-Winning Ergonomic Design


FDA PENDING

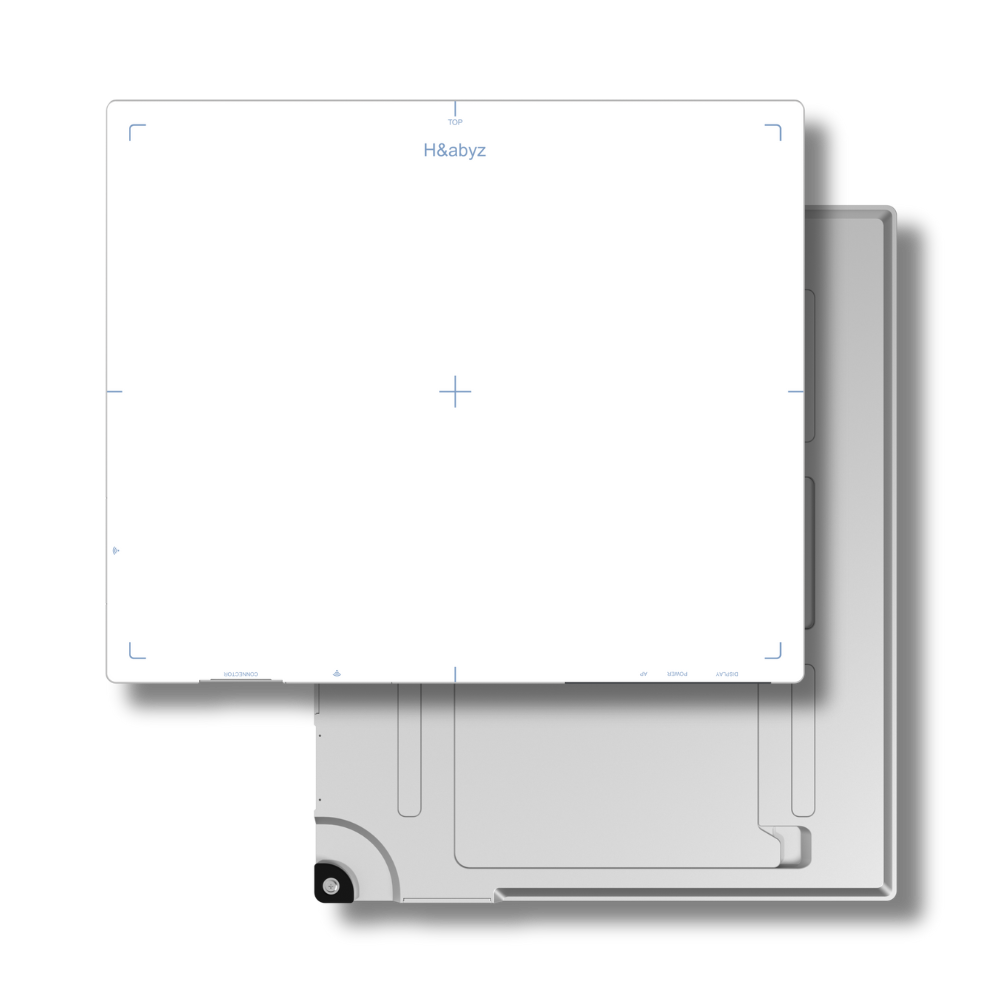

 Glass-Free 1417
ScintillatorCsI:Tl
Sensora-Si Non-Glass TFT
Weight **2.9 kg / 3.1 kg
Pixel Pitch
140μm
Dimension460.5 x 384.5 mm
 Glass 1417
ScintillatorCsI:Tl
Sensor
a-Si TFT
Weight **
3.1 kg / 3.3 kg
Pixel Pitch
140μm
Dimension460.5 x 384.5 mm

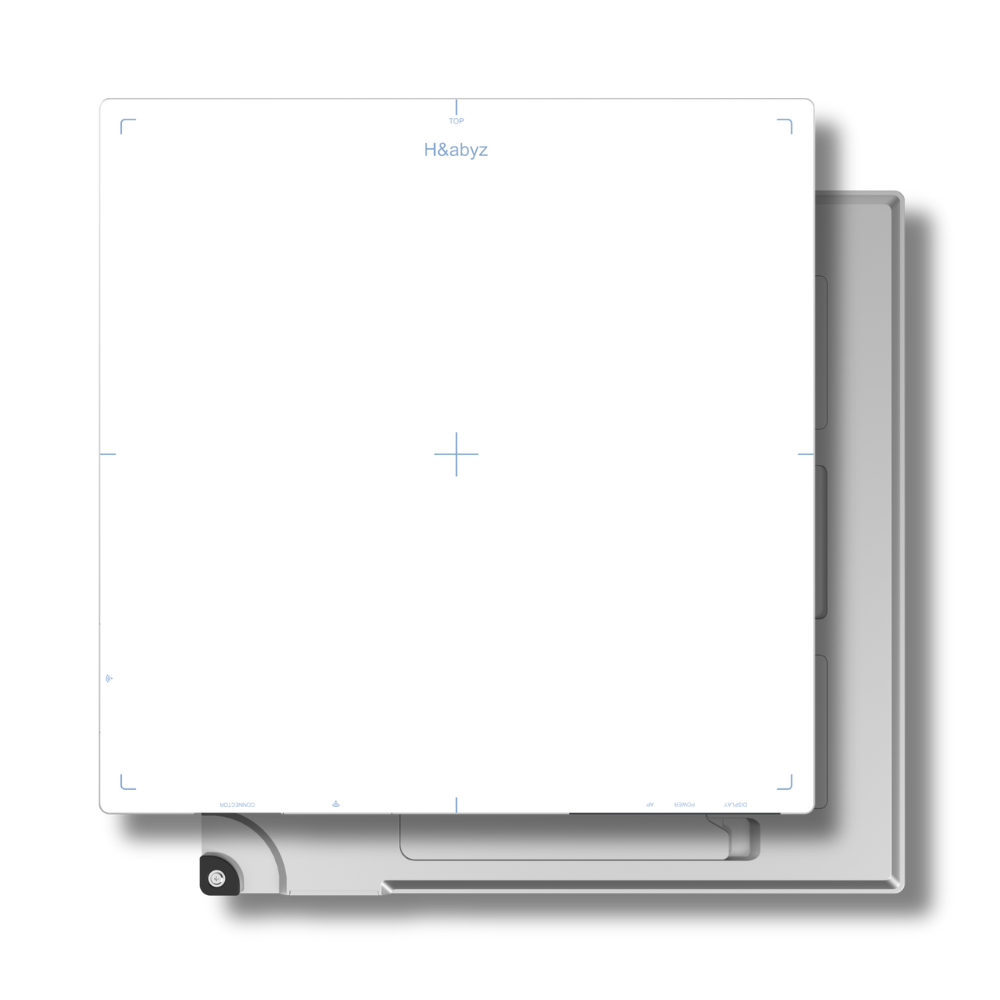

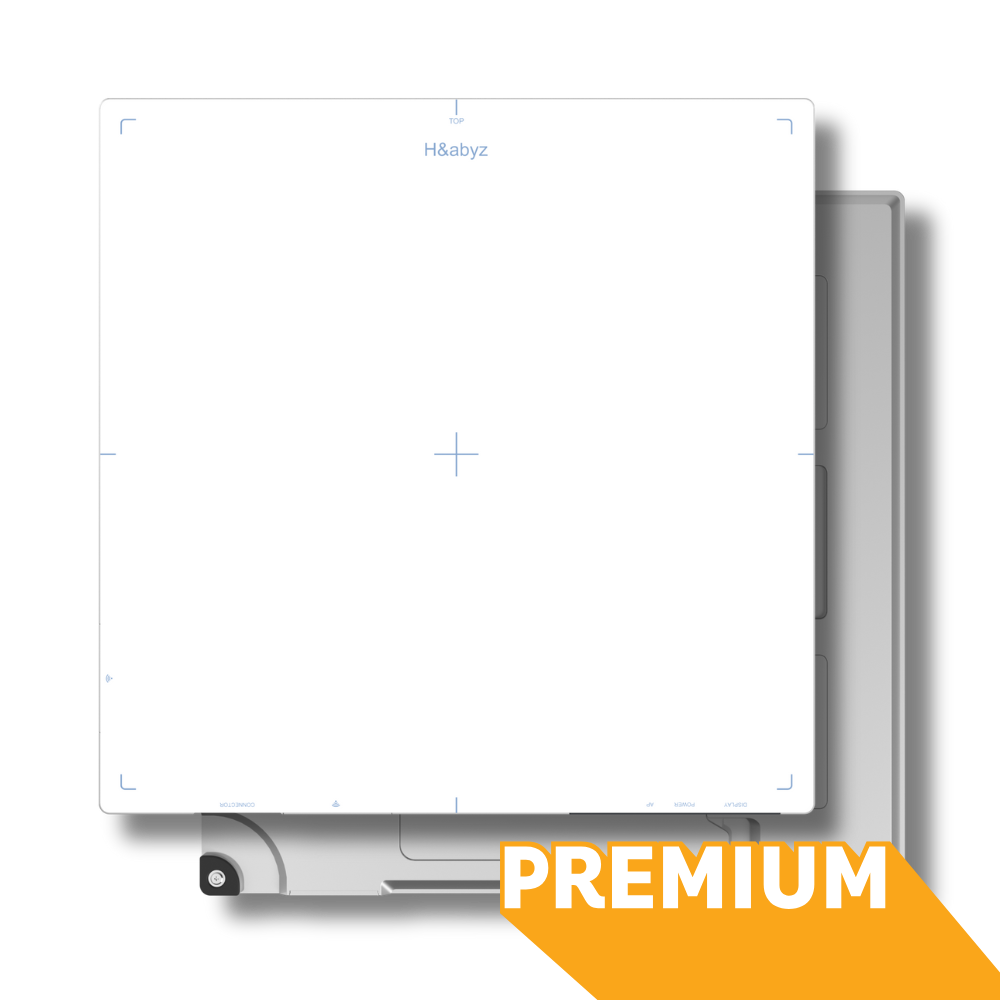

 Glass-Free 1717
ScintillatorCsI:Tl
Sensor
a-Si Non-Glass TFT
Weight **
3.4 kg / 3.6 kg
Pixel Pitch
140μm
Dimension460.5 x 460.5 mm
 Glass 1717
ScintillatorCsI:Tl
Sensor
a-Si TFT
Weight **
3.6 kg / 3.8 kg
Pixel Pitch
140μm
Dimension460.5 x 460.5 mm

* Specifications subject to change without prior notice.

** Approximate weight with 2 batteries.

*** Images shown are for illustrative reference and may differ from the actual product.

Smart Features of OpixDR

Hot Swap

Battery

Point Load

200 kg

Double Capacity

Battery (2ea)

Uniform Load

400 kg

Dust-water resistance

IP68

Drop Test

1.5 m

Experience Durability  Effortless Portability

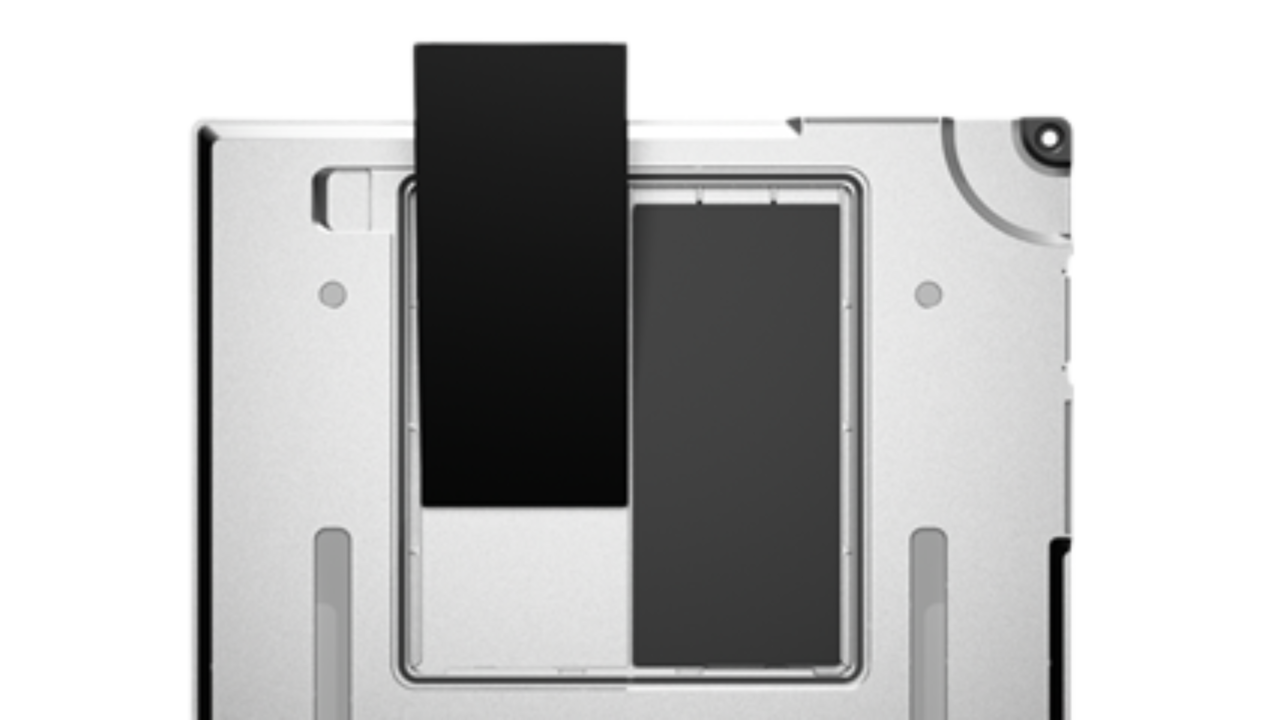

Non-stop use with swappable dual batteries

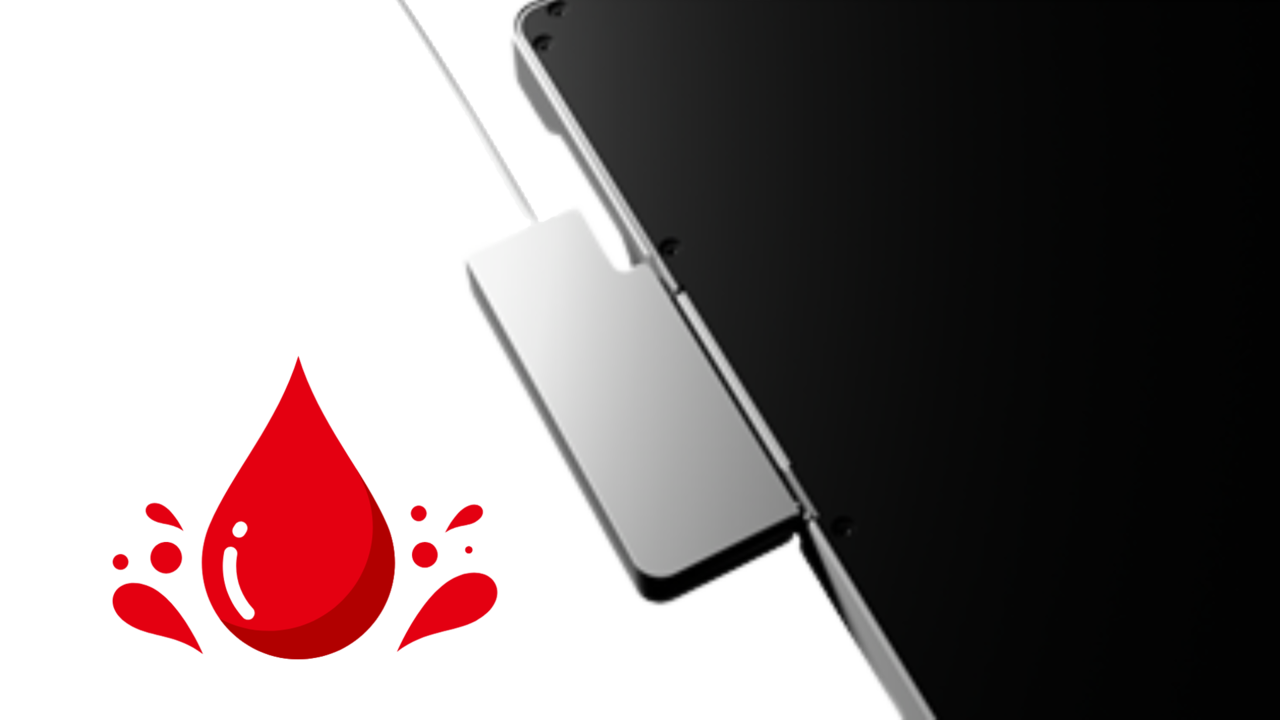

Blood & Water-proof Connector

* Model availability may vary.

Extreme Portability

Anytime, anywhere

StandAlone Mode

No network required

— image acquisition and storage directly on the detector. (Upto 200 images)

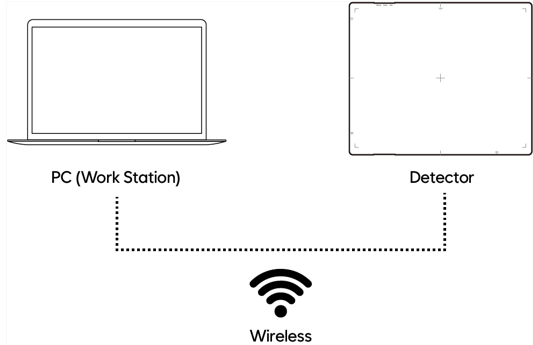

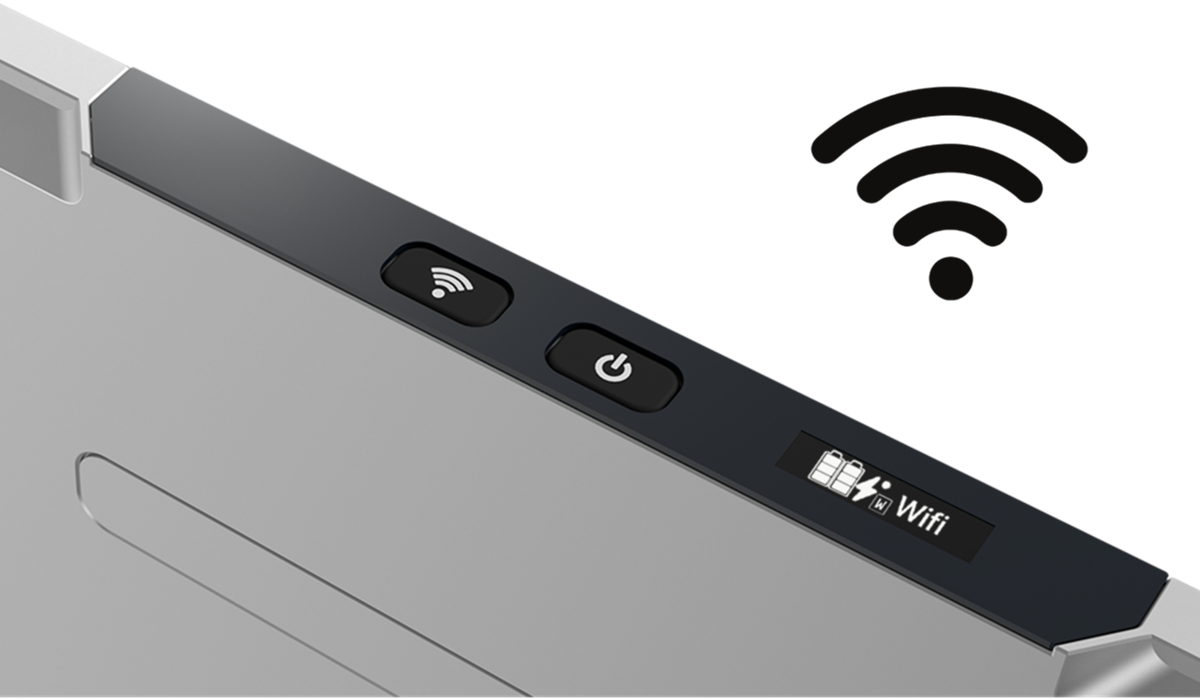

AP Mode

 No external AP required

— direct wireless connection to a PC using the detector as an access point.

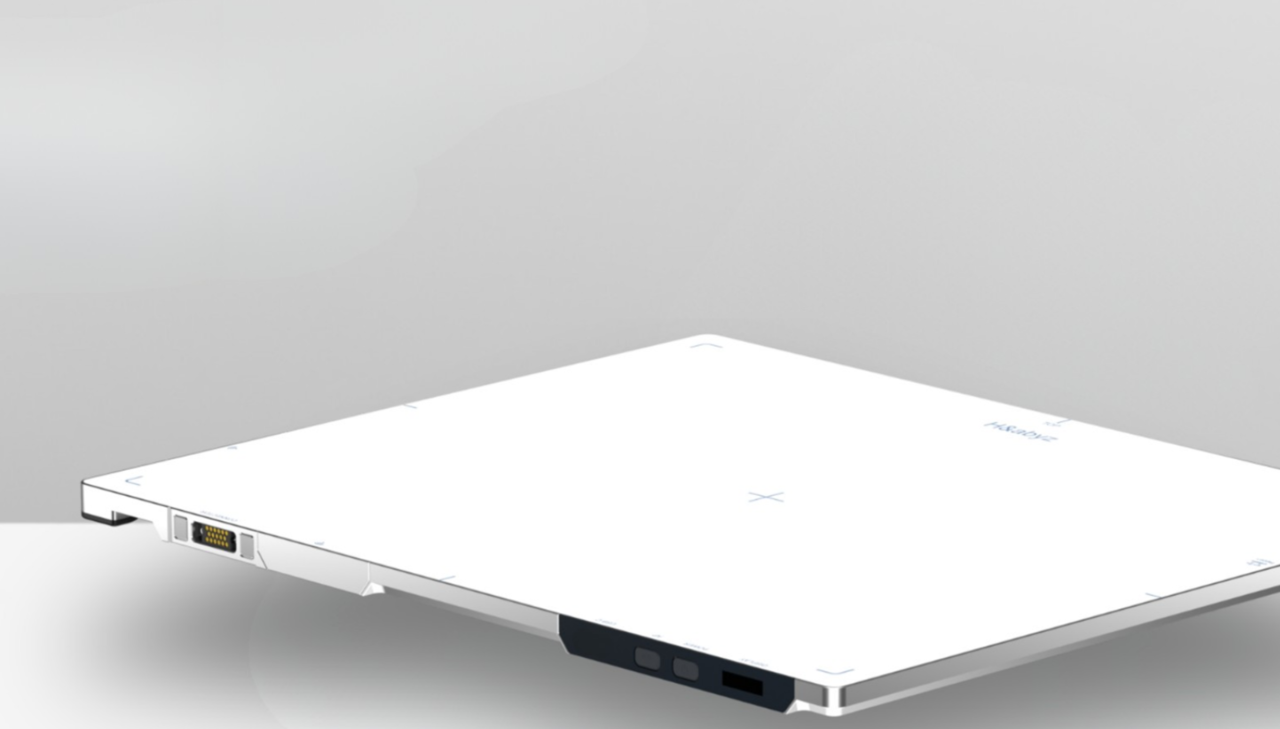

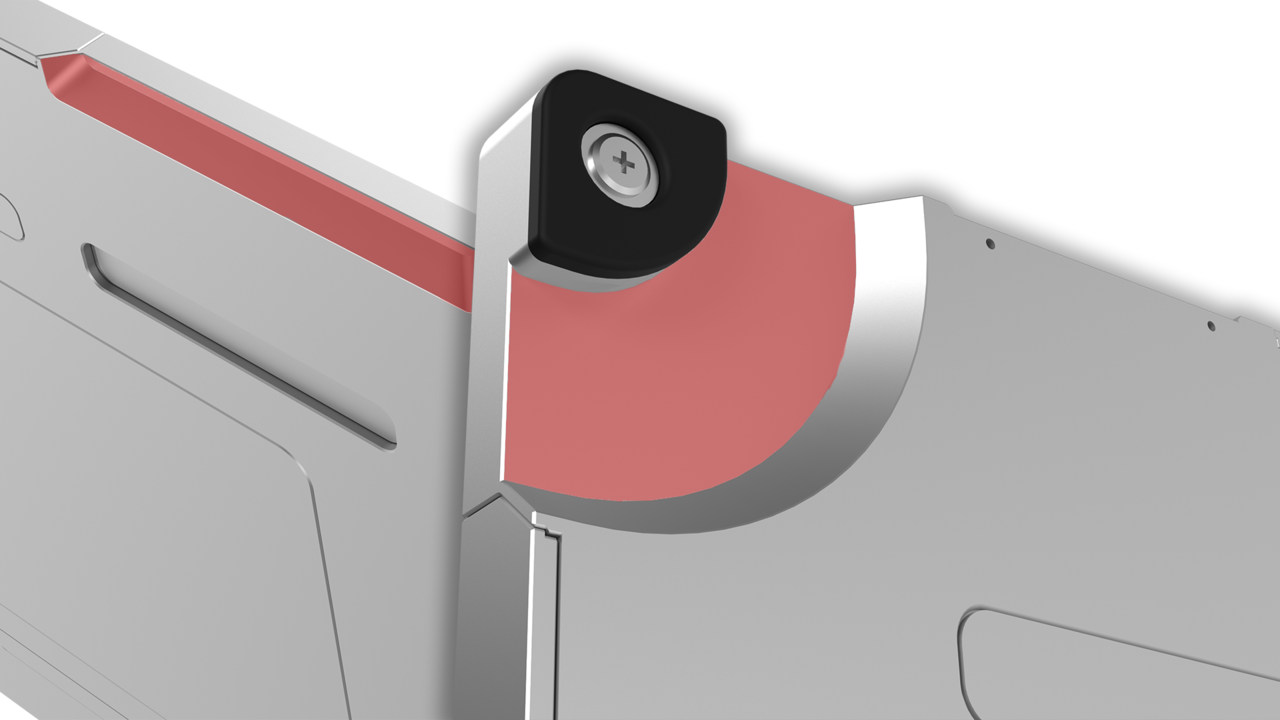

Ultra Slim Edge

No strain to carry

— lightweight and ergonomic design for easy mobility.

▶ Specification : Wireless - glass type
*Glass 1417 Standard

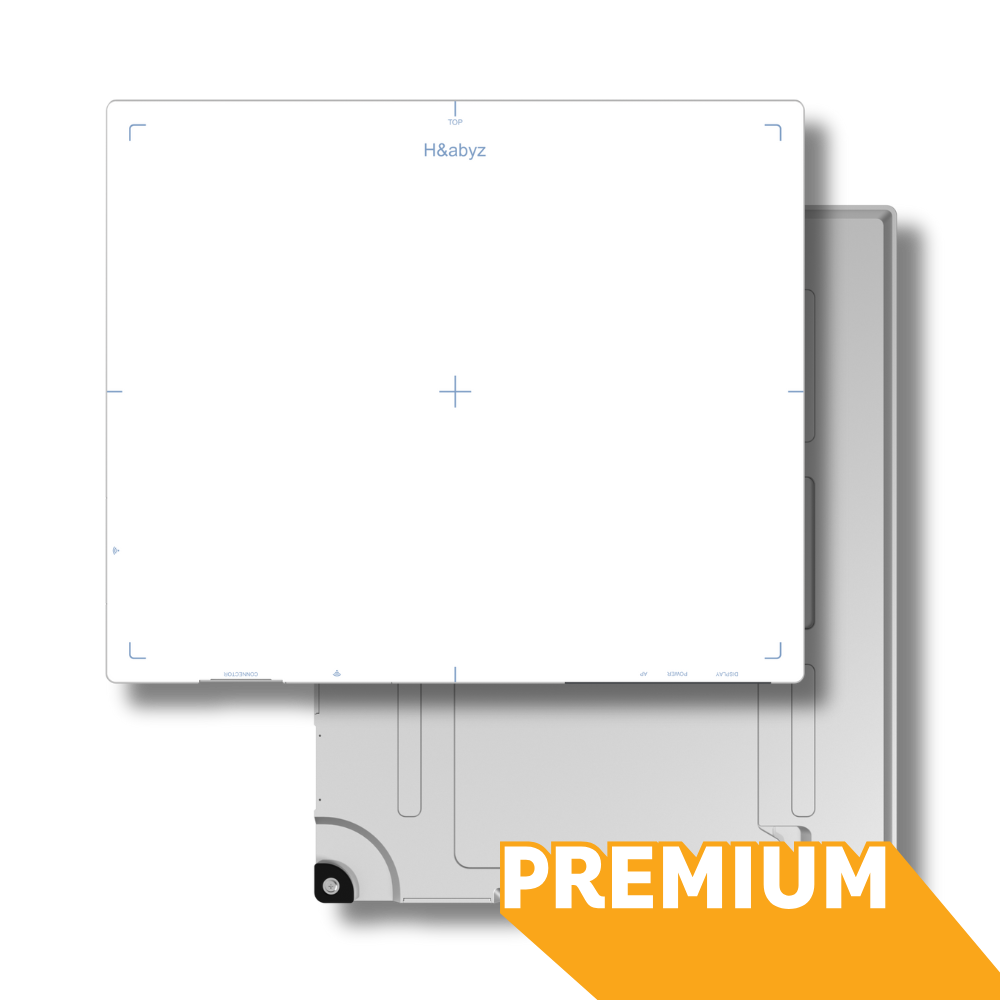

Glass 1417 Premium
Glass  1717 Standard
Glass 1717 Premium
ScintillatorCsI:Tl
CsI:TlCsI:Tl
CsI:Tl
Pixel Pitch140μm
140μm140μm
140μm
Spatial Resolution3.57 lp/mm
3.57 lp/mm3.57 lp/mm
3.57 lp/mm
DQE64% (0.1 lp/mm)
74% (0.1 lp/mm)64% (0.1 lp/mm)
74% (0.1 lp/mm)
MTF88% (0.5 lp/mm)
84% (0.5 lp/mm)88% (0.5 lp/mm)84% (0.5 lp/mm)
Dimensions384.5 x 460.5 x 15.7 mm
384.5 x 460.5 x 15.7 mm
460.5 x 460.5 x 15.7 mm
460.5 x 460.5 x 15.7 mm
Active Detector Matrix2,500 x 3,052 pixels
2,500 x 3,052 pixels
3,040 x 3,040 pixels
3,040 x 3,040 pixels
Effective Area350 x 427.3 mm
350 x 427.3 mm
425.6 x 425.6 mm
425.6 x 425.6 mm
Weight **3.1 kg3.3 kg3.6 kg3.8 kg
Dust/Water-ResistanceIP68
IP68IP68IP68
▶ Specification : Wireless - glass-free
*Glass-free 1417 Standard
Glass-free 1417 Premium
Glass-free 1717 Standard
Glass-free 1717 Premium
ScintillatorCsI:Tl
CsI:TlCsI:Tl
CsI:Tl
Pixel Pitch140μm
140μm140μm
140μm
Spatial Resolution3.57 lp/mm
3.57 lp/mm3.57 lp/mm
3.57 lp/mm
DQE64% (0.1 lp/mm, Typical)
74% (0.1 lp/mm, Typical)64% (0.1 lp/mm, Typical)
74% (0.1 lp/mm, Typical)
MTF88% (0.5 lp/mm, Typical)
84% (0.5 lp/mm, Typical)88% (0.5 lp/mm, Typical)84% (0.5 lp/mm, Typical)
Dimensions384.5 x 460.5 x 15.7 mm
384.5 x 460.5 x 15.7 mm
460.5 x 460.5 x 15.7 mm
460.5 x 460.5 x 15.7 mm
Active Detector Matrix2,500 x 3,052 pixels
2,500 x 3,052 pixels
3,072 x 3,072 pixels
3,072 x 3,072 pixels
Effective Area350 x 427.3 mm
350 x 427.3 mm
430.1 x 430.1 mm
430.1 x 430.1 mm
Weight **2.9 kg3.1 kg3.4 kg3.6 kg
Dust/Water-ResistanceIP68
IP68IP68IP68

* Specifications subject to change without prior notice.

** Approximate weight with 2 batteries.

*** Images shown are for illustrative reference and may differ from the actual product.
