H&abyz

HAD SERIES

Wired


17x17"


Wireless


(Glass Type)

14x17" / 17x17"

Wireless


(Glass-Free)

14x17"

HAD Series

Globally Trusted

Clinically Proven

Discover the trusted performance of the H&abyz HAD Series —

a steady seller recognized by healthcare professionals worldwide.

a-Si TFT

Detector Type

CsI:Tl

Scintillator

140㎛

Pixel Pitch

3.57 lp/mm

Spatial Resolution

AED

All Available

mobile background

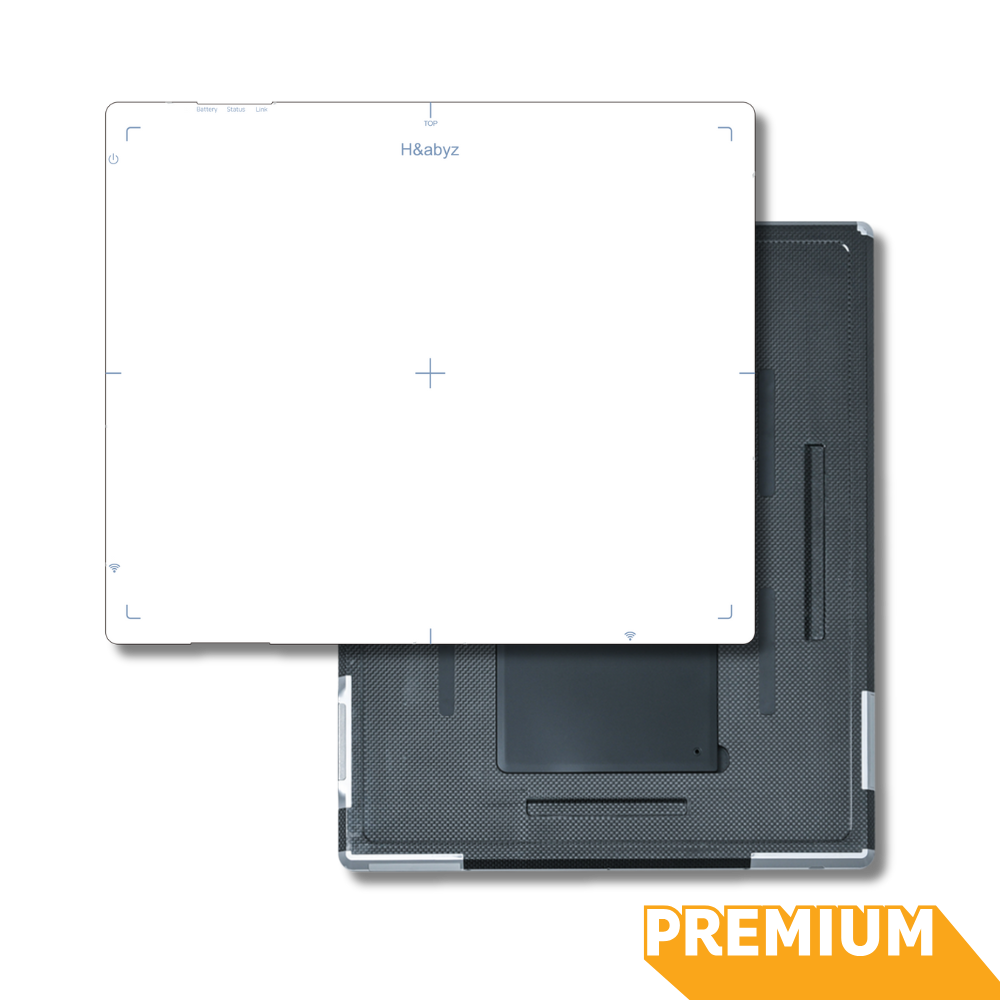

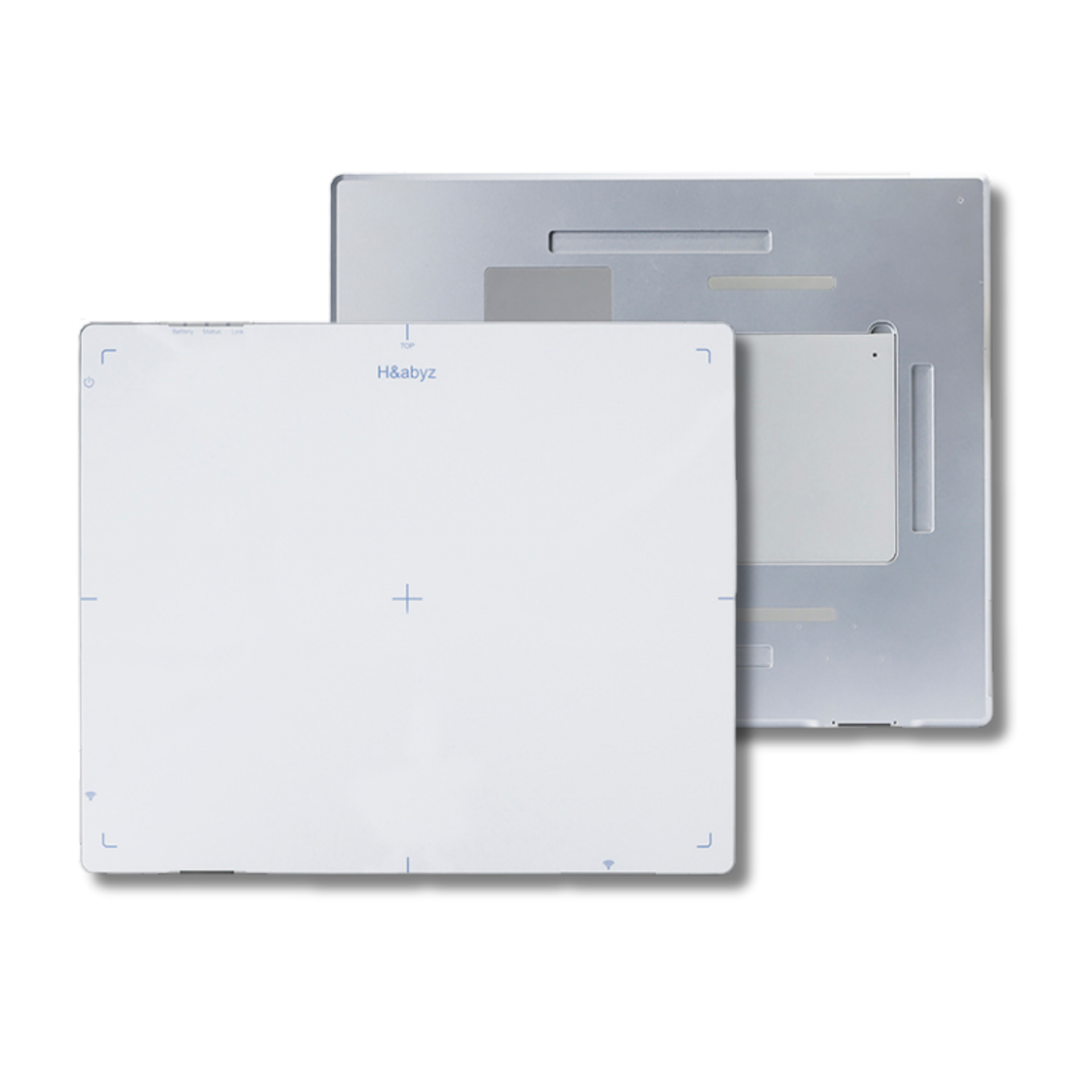

 Glass-Free 1417
ScintillatorCsI:Tl
Sensora-Si Non-Glass TFT
Weight **2.3 kg
Pixel
3,040 x 2,466 pixels
Dimension460 x 384 mm

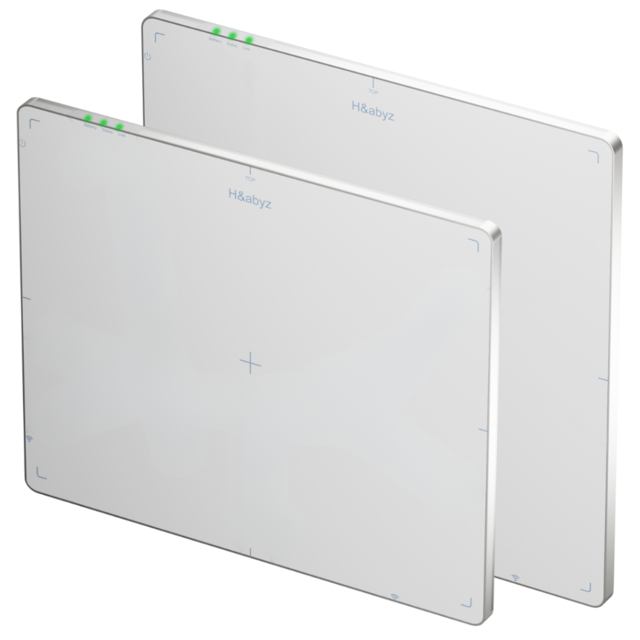

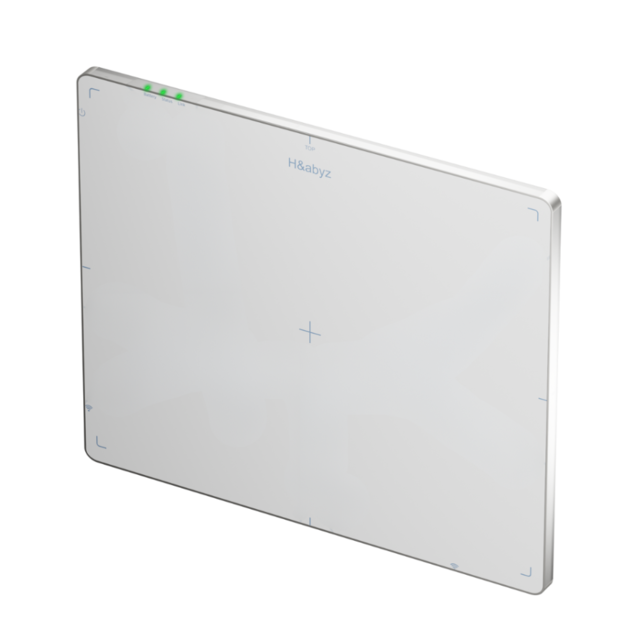

 Glass 1417
ScintillatorCsI:Tl
Sensor
a-Si TFT
Weight **
3.1 kg
Pixel3,040 x 2,466 pixels
Dimension460 x 384 mm

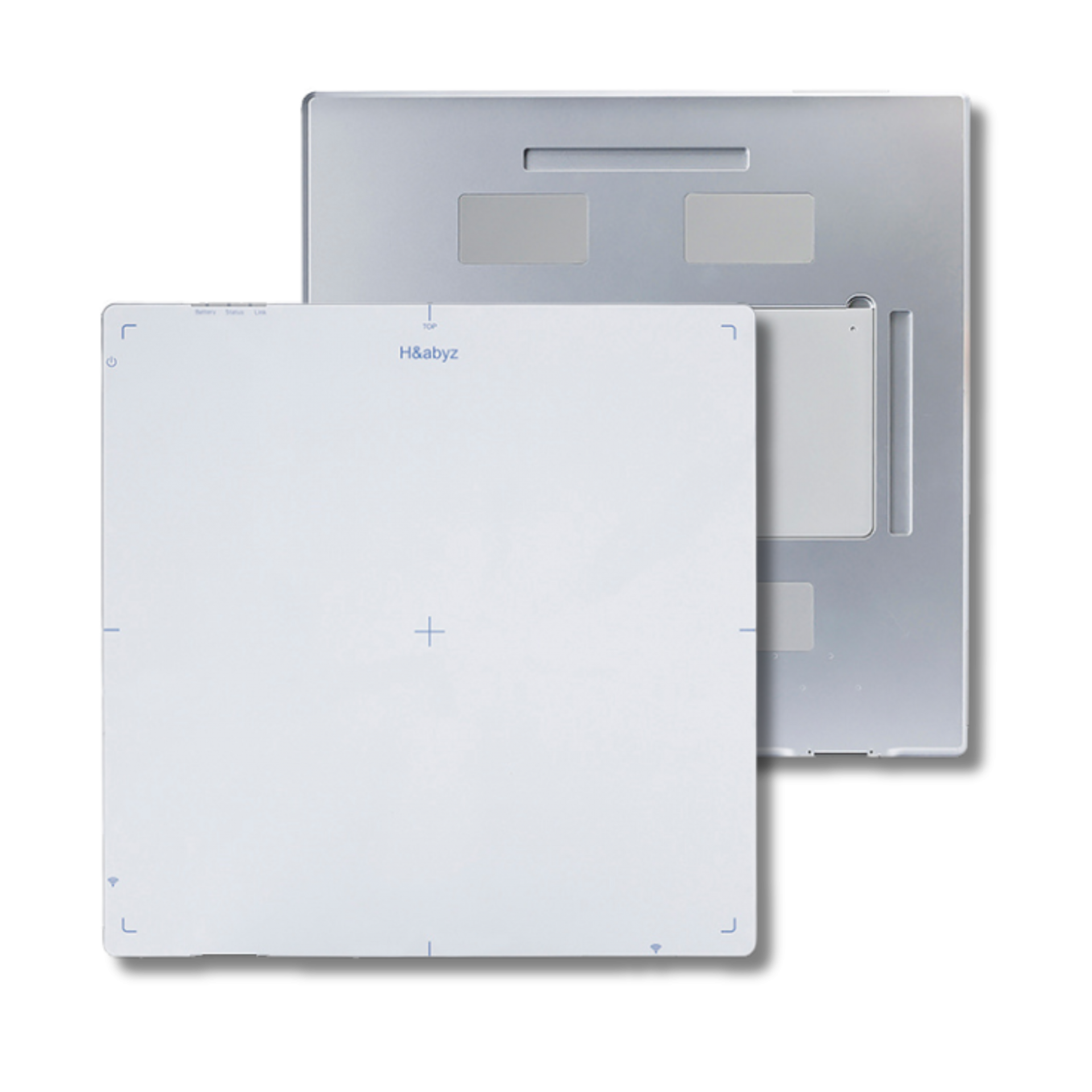

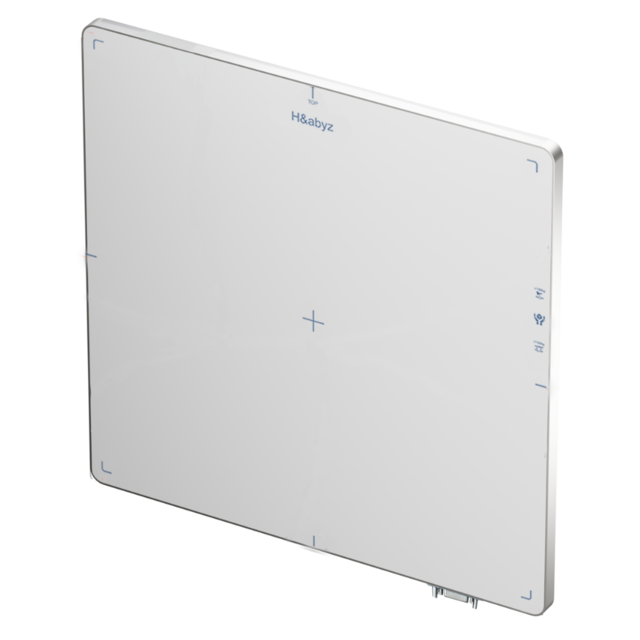

 Glass 1717
ScintillatorCsI:Tl
Sensor
a-Si TFT
Weight **
3.6 kg
Pixel
3,040 x 3,036 pixels
Dimension460 x 460 mm

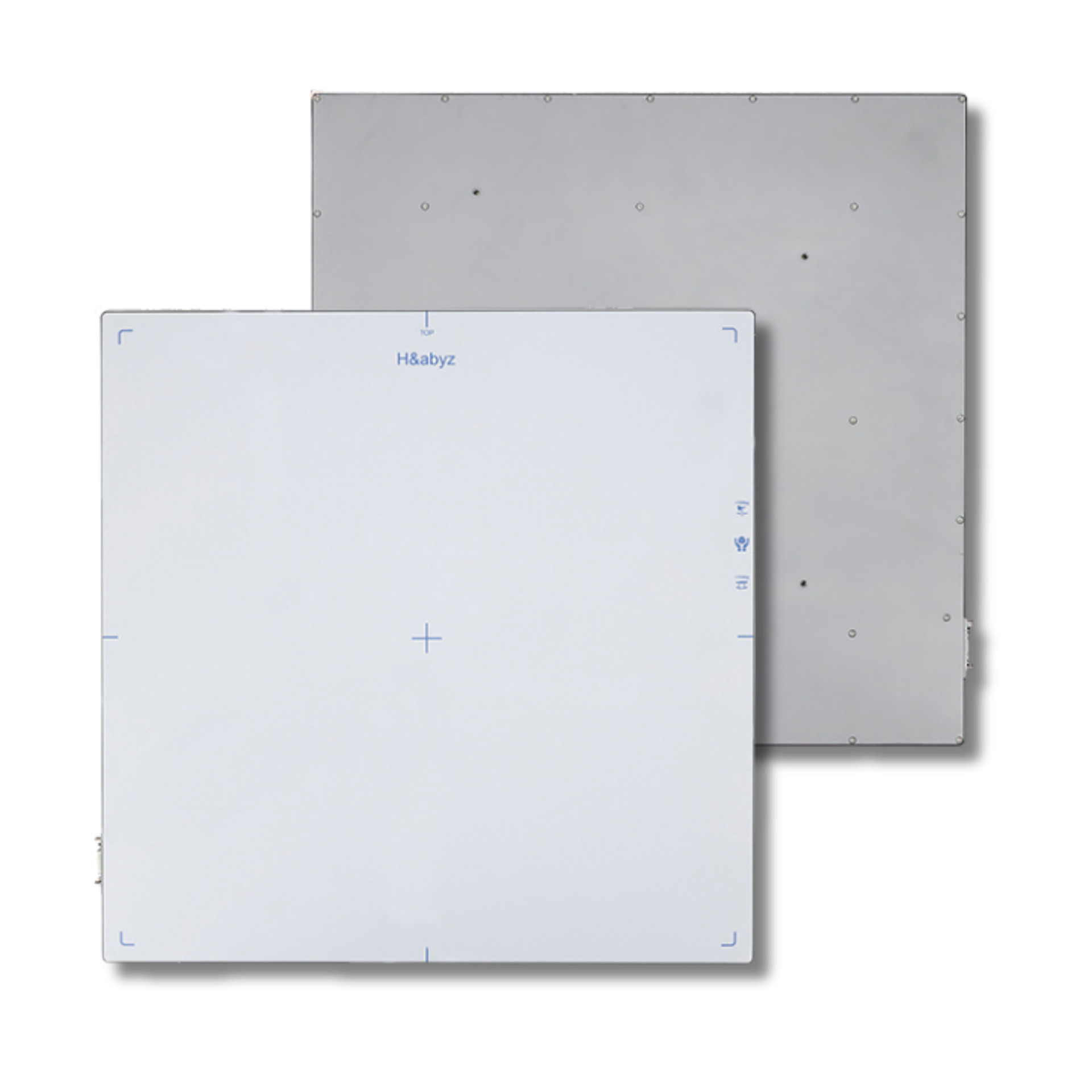

 HAD1717MC
ScintillatorCsI:Tl
Sensor
a-Si TFT
Weight **
3.75 kg
Pixel
3,072 x 3,072 pixels
Dimension460 x 460 mm
▶ Specification : Wired
*
Wired 1717
Detector Typea-Si TFT
ScintillatorCsI:Tl
Pixel Pitch140μm
Spatial Resolution3.57 lp/mm
DQE45% (0.1 lp/mm)
MTF93% (0.1 lp/mm)
Dimensions460 x 460 x 15 mm
Active Detector Matrix3,072 x 3,072 pixels
Effective Area427.2 mm x 427.2 mm
Weight **3.75 kg
Dust/Water-ResistanceIP44
▶ Specification : Wireless - glass type
*Glass 1417
Glass 1717
Detector Typea-Si TFT
a-Si TFT
ScintillatorCsI:Tl
CsI:Tl
Pixel Pitch140μm
140μm
Spatial Resolution3.57 lp/mm
3.57 lp/mm
DQE70% (0.1 lp/mm)
70% (0.1 lp/mm)
MTF83% (0.5 lp/mm)
83% (0.5 lp/mml)
Dimensions460 x 384 x 15 mm
460 x 460 x 15 mm
Active Detector Matrix3,040 x 2,466 pixels
3,040 x 3,036 pixels
Effective Area425.6 mm x 345.24 mm
425.6 mm x 425.04 mm
Weight **3.1 kg3.6 kg
Dust/Water-ResistanceIP56
IP56
▶ Specification : Wireless - glass-free
*Glass-free 1417
Detector Typea-Si Non-Glass TFT
ScintillatorCsI:Tl
Pixel Pitch140μm
Spatial Resolution3.57 lp/mm
DQE70% (0.1 lp/mm)
MTF83% (0.5 lp/mm)
Dimensions460 x 384 x 15 mm
Active Detector Matrix3,040 x 2,466 pixels
Effective Area425.6 mm x 345.24 mm
Weight **2.3 kg
Dust/Water-ResistanceIP56

* Specifications subject to change without prior notice.

** Approximate weight with battery set.

*** Images shown are for illustrative reference and may differ from the actual product.
